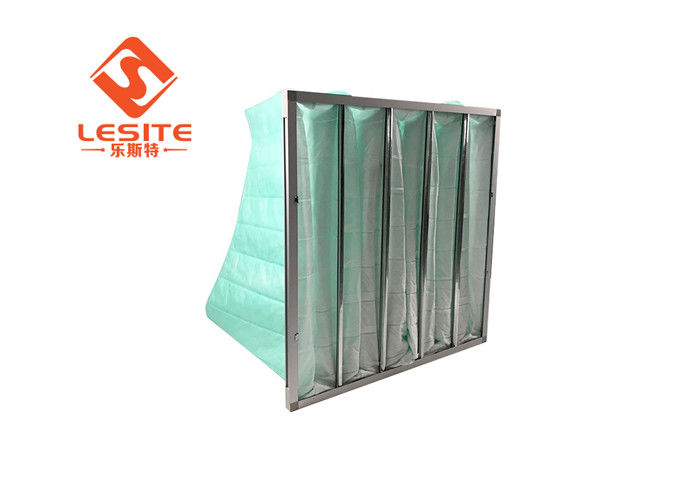

Kleine Weerstandsglasvezel 21mm H14-de Filter van de Aluminiumzak, de Filter van de Zaklucht
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | LESITE |
| Certificering: | CE |
| Modelnummer: | De Filter van de aluminiumzak |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | Onderhandel |
|---|---|
| Prijs: | Negotiate |
| Verpakking Details: | de uitvoerverpakking |
| Levertijd: | 5-8 dagen na storting |
| Betalingscondities: | T/T, L/C |
| Levering vermogen: | 5000 m ² per maand |
|
Gedetailleerde informatie |
|||
| Efficiency: | 99.97%, H13~H14 | Max Humidity: | 100% |
|---|---|---|---|
| Grootte: | Aangepast | Materiaal: | Glasvezel |
| max.humidity: | 100% | Facultatieve dikte: | Aluminium/GI: 21, 25, 46; Plastiek: 25 |
| Kader: | alluminumlegering | Gebruik: | De Prefilter van de luchtvoorwaarde |
| Markeren: | 21mm de Filter van de Aluminiumzak,H14 de Filter van de Aluminiumzak,De luchtfilter van de H14zak |
||
Productomschrijving
Small Resistance Aluminum Bag Filter Temperature Resistance Up To 80℃
About pocket filter
The pocket filter has the advantages of large dust holding capacity and low wind speed. as a result of this, it is considered to be the best medium filter structure.The medium efficiency of the glass fiber filter use the melt-blown superfine glass fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and it has higher efficiency, lower resistance, larger dust capacity than the similar synthetic fiber bag filter.
|
item
|
value
|
|
Medial material
|
Glass fiber/ synthetic fiber
|
|
Frame material
|
Aluminum /Galvanized steel
|
|
Filter pocket number
|
3-12
|
|
Efficiency
|
G4, M5, M6, F7, F8, F9
|
|
Max Operating Temperature
|
70˚C
|
|
Frame thickness
|
21mm/25mm
|
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Description
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
| Frame | Aluminum alloy |
| Filter medium | Synthetic fiber |
| Max. temperature | 80°C |
| Max. humidity | 80%RH |
